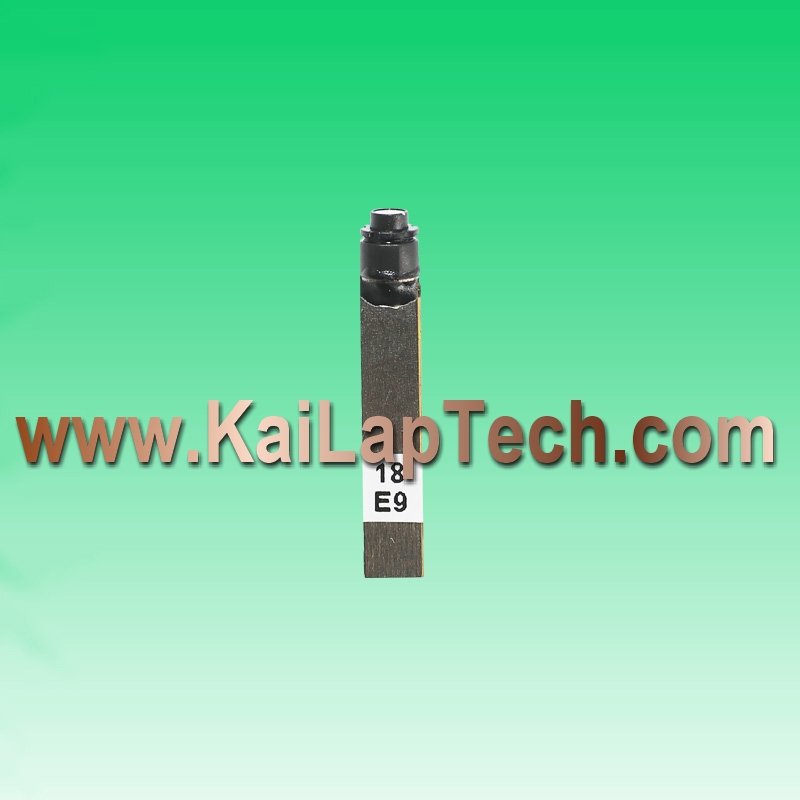

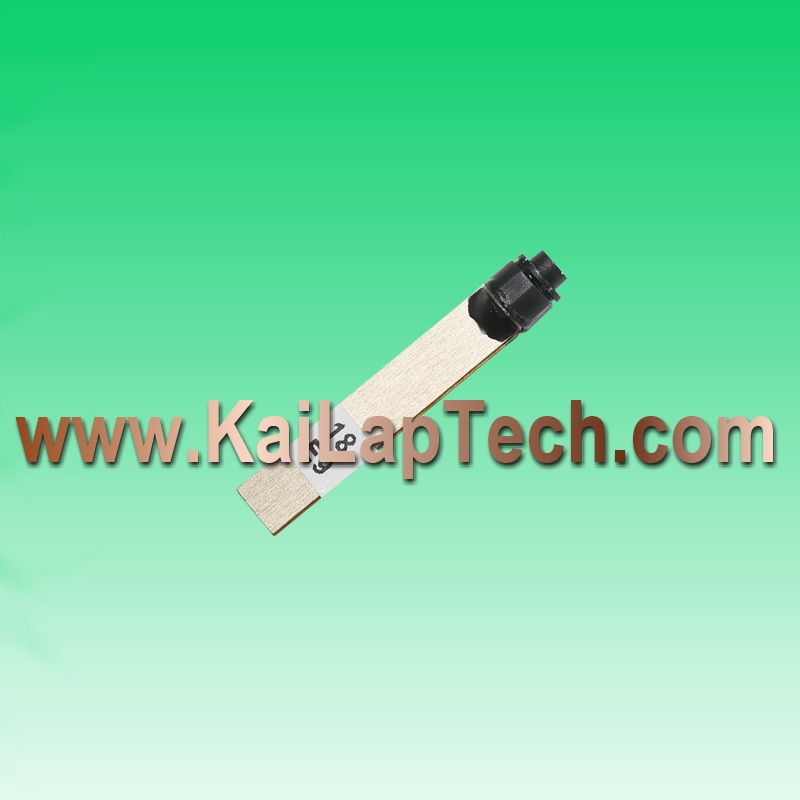

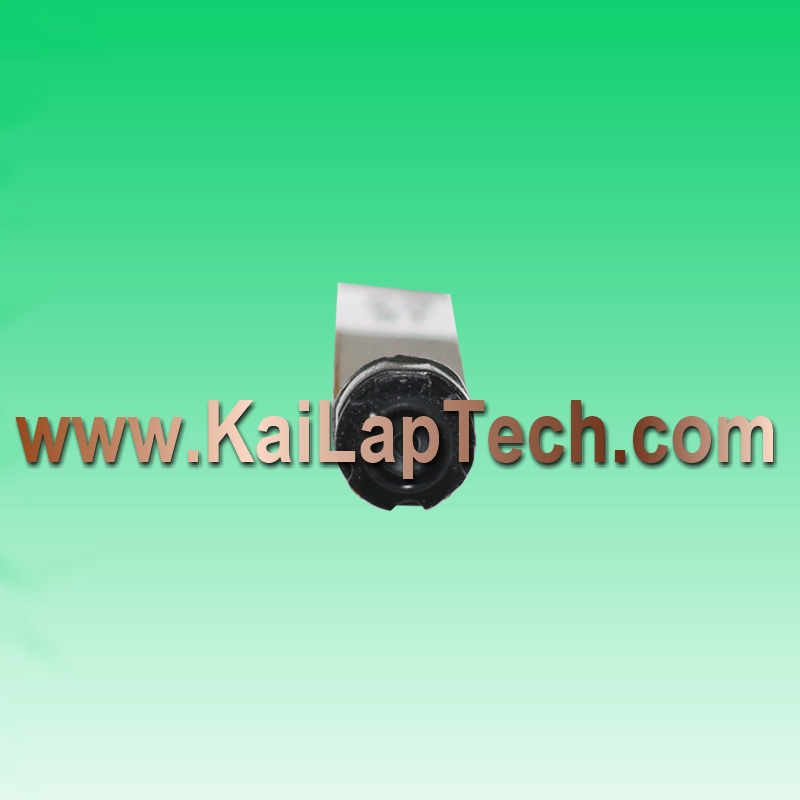

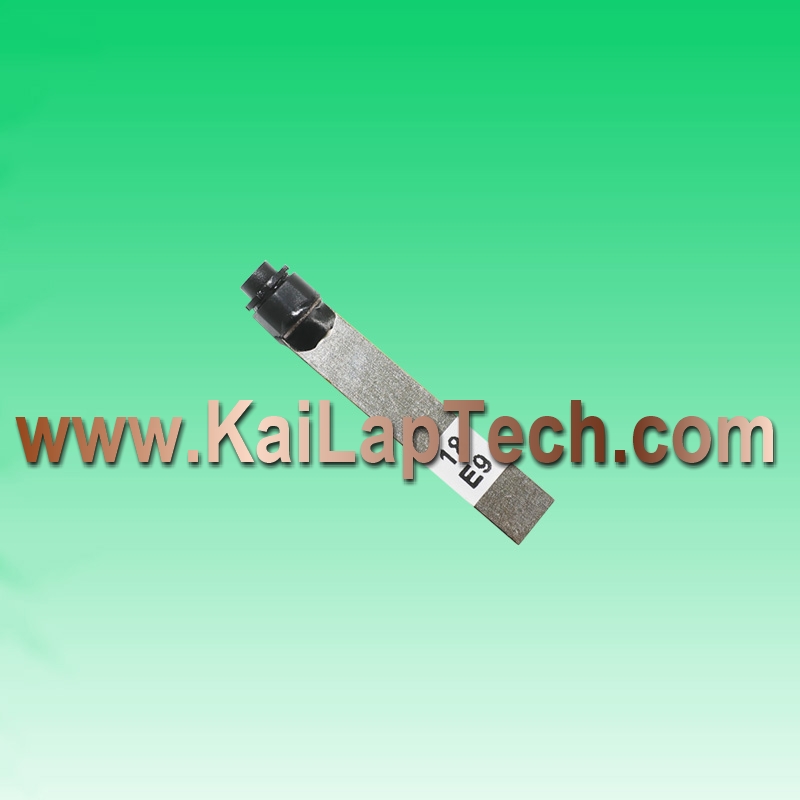

        1MP OmniVision OV9734 MIPI Interface Fixed Focus Endoscope Camera Module
        Model No.   KLT-2A-FF-OV9734 V4.0










 Camera Module No. KLT-2A-FF-OV9734 V4.0
 Resolution 1MP
 Image Sensor OV9734
 Sensor Type 1/9"
 Pixel Size 1.4 um x 1.4 um
 EFL 1.03 mm
 F.NO 4.70
 Pixel 1280 x 720
 View Angle 88.0°(DFOV)  80.0°(HFOV)  50.5°(VFOV)
 Lens Dimensions ะค3.5 mm
 Module Size 21.16 x 3.50 mm
 Module Type Fixed Focus
 Interface MIPI
 Auto Focus VCM Driver IC None
 Lens Type 650nm IR Cut
 Operating Temperature -30°C to +85°C
 Mating Connector BM23FR0.6-16DS-0.35V(51)
